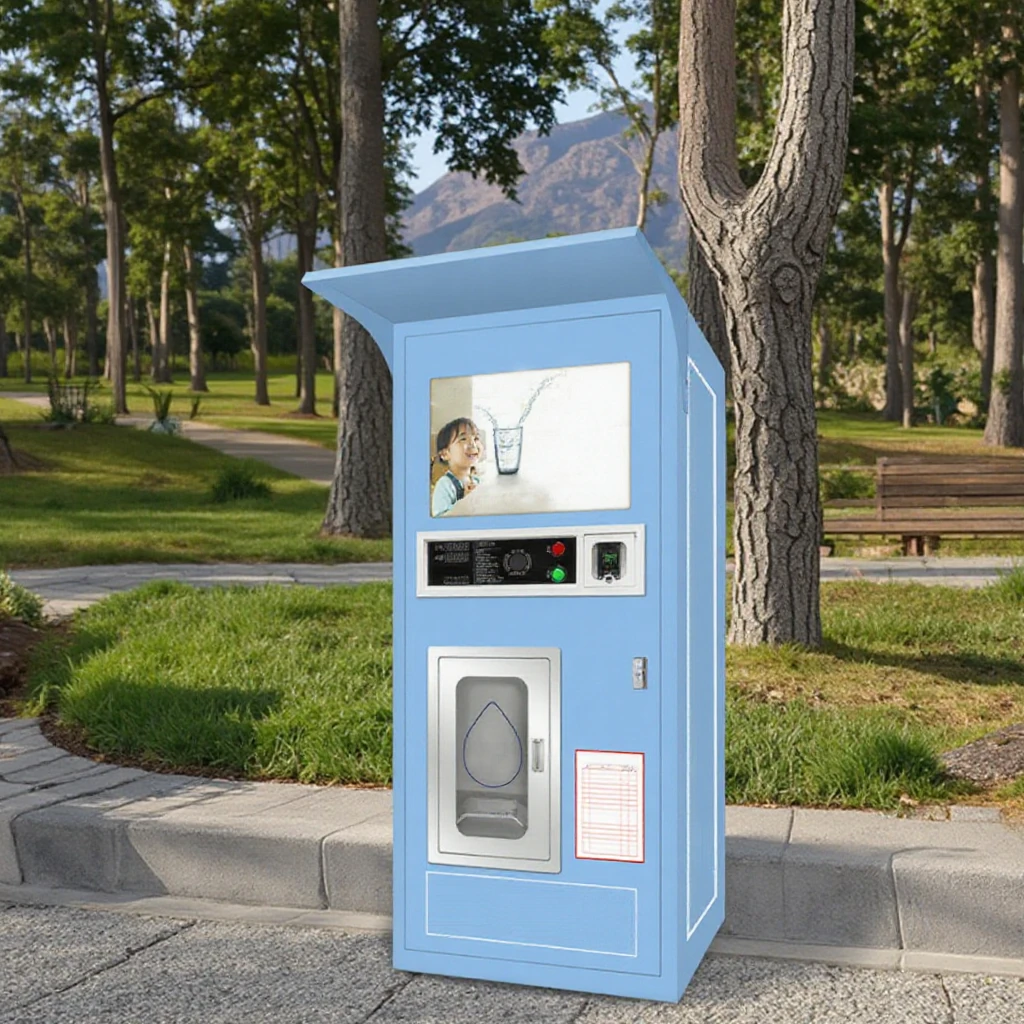

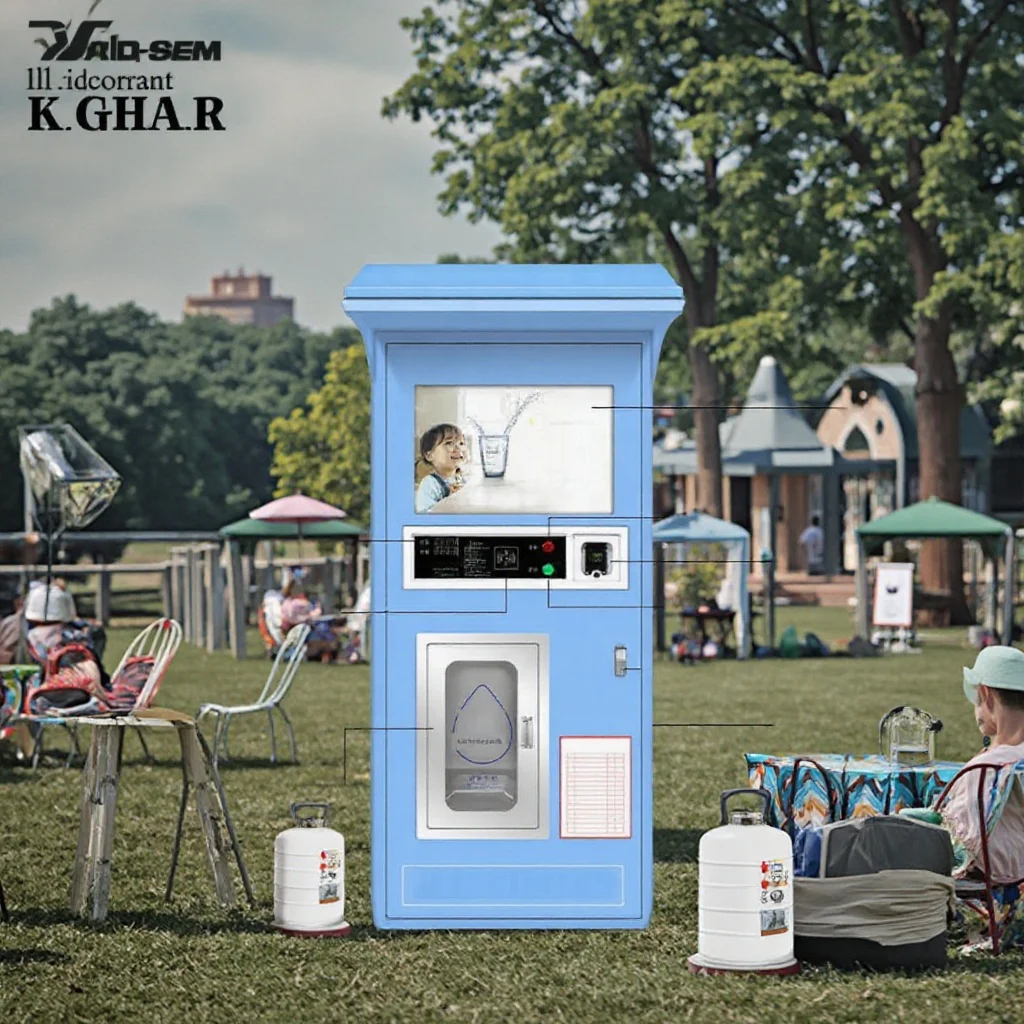

Fully Automatic Pure Drinking Purified Coin Operated Water Vending Machine for Drinking Water
A fully automatic pure drinking purified coin-operated water vending machine is a convenient solution to provide clean drinking water in public spaces. Here’s an overview of its features, components, working mechanism, and benefits: Features Au...
Description

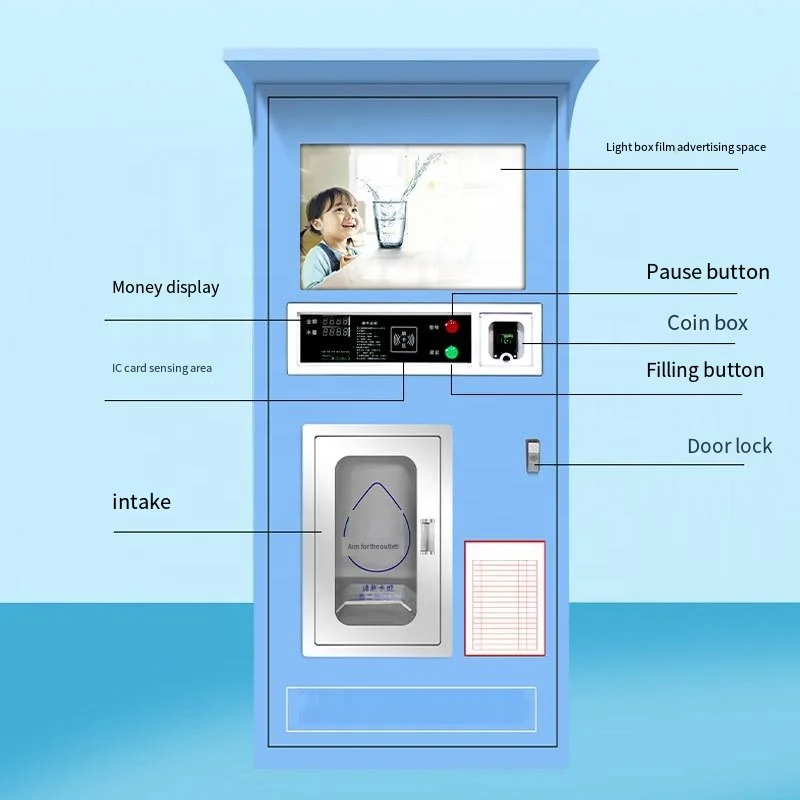

A fully automatic pure drinking purified coin-operated water vending machine is a convenient solution to provide clean drinking water in public spaces. Here’s an overview of its features, components, working mechanism, and benefits: Features Automated Dispensing: Users can easily dispense water by inserting coins or using a cashless payment system (e.g., mobile payment, credit/debit card). Purification System: Multi-Stage Filtration: Includes pre-filters, activated carbon filters, reverse osmosis (RO), and UV sterilization to ensure high-quality purified water. UV Treatment: Destroys bacteria, viruses, and other pathogens. User Interface: Digital Display: For instructions, payment options, and water quality indicators. Touchscreen or Button-Based: For easy interaction. Water Quality Monitoring: Sensors to monitor TDS (Total Dissolved Solids), pH levels, and other quality indicators, with alerts for maintenance. Coin and Cashless Payment System: Accepts coins as well as digital payments for user convenience. Self-Cleaning Mechanism: Periodic automated cleaning of the dispensing nozzle to maintain hygiene. Energy Efficient: Designed to minimize power consumption, possibly with solar power options for outdoor installations. Refillable Tanks: Large storage tanks to ensure a continuous supply of purified water. Remote Monitoring: Allows operators to monitor machine performance, water quality, and maintenance needs remotely. Robust Design: Durable materials to withstand outdoor conditions and vandalism. Components Water Source Connection: Connection to a municipal water supply or a borewell. Filtration System: Includes sediment filters, carbon filters, RO membranes, and UV lamps. Storage Tank: For storing purified water before dispensing. Dispensing Unit: Mechanism for dispensing water into user containers. Control Unit: Microcontroller or PLC for managing the machine’s operations. Payment System: Coin acceptor, cashless payment module, and user interface. Sensors: For monitoring water quality and detecting malfunctions. Power Supply: Electric components and possibly a backup battery system. Working Mechanism Water Intake: The machine is connected to a water supply and draws water for purification. Filtration Process: Water passes through various filters (sediment, carbon, RO) and is treated with UV light. Storage: Purified water is stored in a tank, ready for dispensing. User Interaction: Users pay for the water using coins or cashless options. The machine verifies the payment. Dispensing: Once payment is confirmed, the machine dispenses the selected amount of water. Monitoring and Maintenance: The machine continuously monitors water quality and operational status, alerting for maintenance when necessary. Benefits Accessibility: Provides easy access to clean drinking water in public areas, schools, parks, etc. Cost-Effective: Reduces the need for bottled water, promoting environmental sustainability. Hygiene: Offers a hygienic solution for drinking water with minimal human contact. Reduced Waste: Encourages the use of refillable bottles instead of single-use plastic. Revenue Generation: Generates income through coin and cashless transactions. Considerations for Implementation Location: Strategic placement in high-traffic areas to maximize usage. Maintenance Plan: Regular maintenance to ensure functionality and water quality. Water Source Quality: Ensure the source water meets initial quality standards before purification. Regulatory Compliance: Adhere to local health and safety regulations regarding drinking water. Conclusion A fully automatic coin-operated water vending machine offers a modern and efficient way to provide purified drinking water. With advanced filtration systems and user-friendly features, it can cater to a growing demand for affordable and accessible clean water while promoting sustainability.
item |
value |
Condition |
New |
Applicable Industries |
Hotels, Restaurant, Home Use, Food Shop, Construction works , Food & Beverage Shops, Advertising Company |
Showroom Location |
None |
Video outgoing-inspection |
Provided |
Machinery Test Report |
Not Available |
Marketing Type |
Hot Product 2025 |
Warranty of core components |
1 Year |
Core Components |
Reverse osmosis purification device, Filling system |
Place of Origin |
China |
Brand Name |
oem |
Material |
Wooden box |
Size |
85*85*200cm |
1Power |
1kw |
Warranty |
1 Year |
Productivity |
100L/Hour |
Velocity of flow |
400G/600G/800G/1200G |
voltage |
110/220V |
Filter level |
8 |
